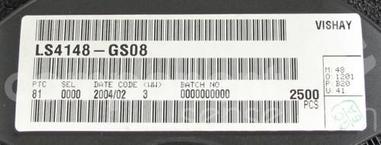

LS4148-GS08
-
-
-
MPN LS4148-GS08Описание VISHAY LS4148-GS08 Small Signal Diode, Single, 100V, 150mA, 1V, 8ns, 2AБренд VISHAYAutomative-Spec YesCase/Package SOD-80ECCN Code EAR99Forward Current 150 mA
-
-
- Automative-Spec: Yes
- Case/Package: SOD-80
- ECCN Code: EAR99
- Forward Current: 150 mA
- Forward Current (Max): 300 mA
- Forward Voltage: 1 V
- Industrial-Spec: Yes
- Junction Temperature: 175℃ (Max)
- Lead-Free Status: Lead Free
- Max Forward Surge Current (Ifsm): 2 A
- Max Repetitive Reverse Voltage (Vrrm): 100 V
- Max Reverse Leakage Current (Ir): 5 nA
- Maximum Forward Voltage (Max): 1 V
- Minimum Packing Quantity: 2500
- Mounting Style: Surface Mount
- Количество штифтов: 2
- Number of Positions: 2
- Operating Temperature: 175℃ (TJ)
- Operating Temperature (Max): 175 ℃
- Operating Temperature (Min): -65 ℃
- Упаковка: Tape & Reel (TR)
- Power Dissipation: 500 mW
- Power Dissipation (Max): 500 mW
- Product Lifecycle Status: Active
- Reverse recovery time: 8 ns
- RoHS: RoHS Compliant
- Size-Height: 1.5 mm
- Size-Length: 3.5 mm
- Size-Width: 1.7 mm
- Thermal Resistance: 300℃/W (RθJA)
VISHAY LS4148-GS08 Small Signal Diode, Single, 100V, 150mA, 1V, 8ns, 2A
